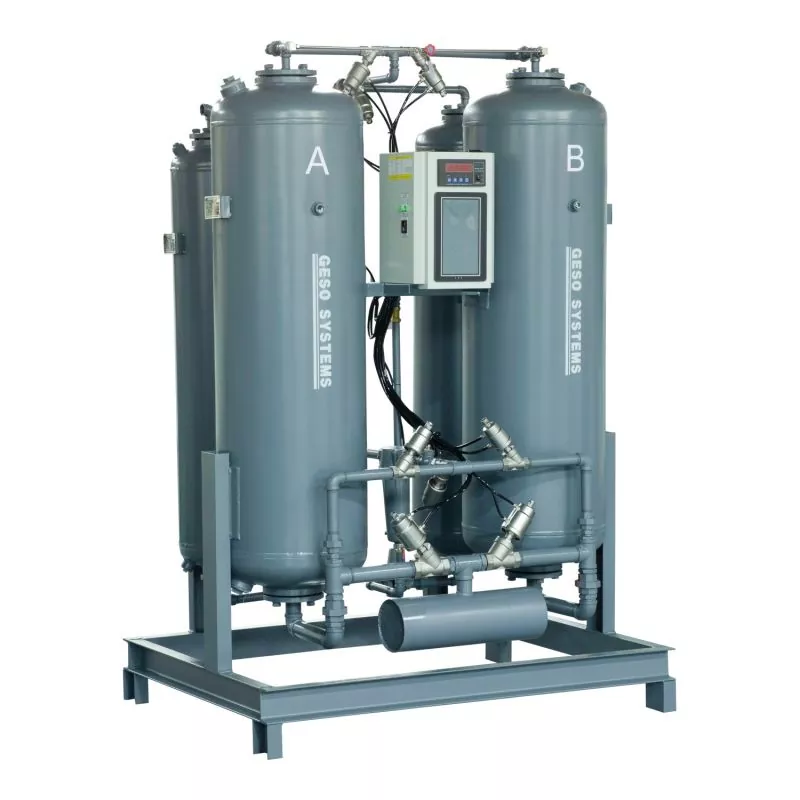

Pressure Swing Adsorption Nitrogen Generator Nitrogen Purity: 99.99%

Variable pressure adsorption nitrogen generator takes clean compressed air as raw material and carbon molecular sieve as adsorbent, and utilizes the principle of variable pressure adsorption to obtain nitrogen at room temerature. According to the difference gf the adsorption anount of oxygen and nitrogen in the air on the surface of carbon molecular sieve and the diffusion rate of oxygen and nitrogen in the carbon molecular sieve, the opening and closing of the programnable controller controls the pragrammed valve, realizing the process of adsorption under pressure and desorption under reduced ressure, conpleting the separation of oxygen and nitrogen, and obtaining the nitrogen with the required purity.

Send Inquiry

■ Geso pressure swing adsorption nitrogen generator fast startup,15-30 minutes to deliver qualified nitrogen gas

■ Fully automatic operation of the equipment, the whole process can be realized unattended

■ Highly efficient molecular sieve loading, tighter, more solid, longer service life

■ Pressure, purity and flow rate are stable and adjustable to meet different needs of customers.

■ Reasonable structure, advanced process, safe and stable, low energy consumption

Pressure swing adsorption nitrogen generator Technicalindicators：

Pressure, purity, and flow rate are stable and adjustable to meet the diferent needs of customers

■ Flow rate:5~ 3000Nm3 /hr

■ Purity: 95%～99.999%

■ Pressure:≤0.8Mpa ( adjustable )

■ Normal pressure dew point: ≤－40℃(lower can be customized)

Note: For lower oxygen content and dew point requireents, a nitrogen purification unit is available as an option.

Process Flow

GSN-99.99 Nitrogen Generator Nitrogen purity: 99.99%

Model	Nitrogen production (Nm³/h)	Effective air consumption (Nm³/min)	Inlet pipe size (DNmm)	Outlet pipe diameter (DNmm)	Host L×W(mm)
GSN5-99.99	5	0.42	15	15	1150×600
GSN10-99.99	10	0.84	15	15	1150×600
GSN20-99.99	20	1.68	25	15	1260×900
GSN30-99.99	30	2.52	32	15	1750×1000
GSN40-99.99	40	3.36	40	20	1750×1000
GSN50-99.99	50	4.2	40	20	2150×1100
GSN60-99.99	60	5.04	50	20	2250×1150
GSN70-99.99	70	5.88	50	20	2250×1150
GSN80-99.99	80	6.72	50	25	2250×1150
GSN100-99.99	100	7.5	50	25	2500×1150
GSN150-99.99	150	12	65	25	2750×1450
GSN200-99.99	200	15	80	30	2850×1550
GSN300-99.99	300	23	80	40	3100×1700
GSN400-99.99	400	30	100	50	3250×1800
GSN500-99.99	500	40	125	50	3500×2150
GSN600-99.99	600	50	125	65	3500×2150
GSN700-99.99	700	60	125	65	3500×2150
GSN800-99.99	800	70	150	65	3500×2150
GSN900-99.99	900	80	150	65	3500×2150
GSN1000-99.99	1000	90	200	80	4400×3150
