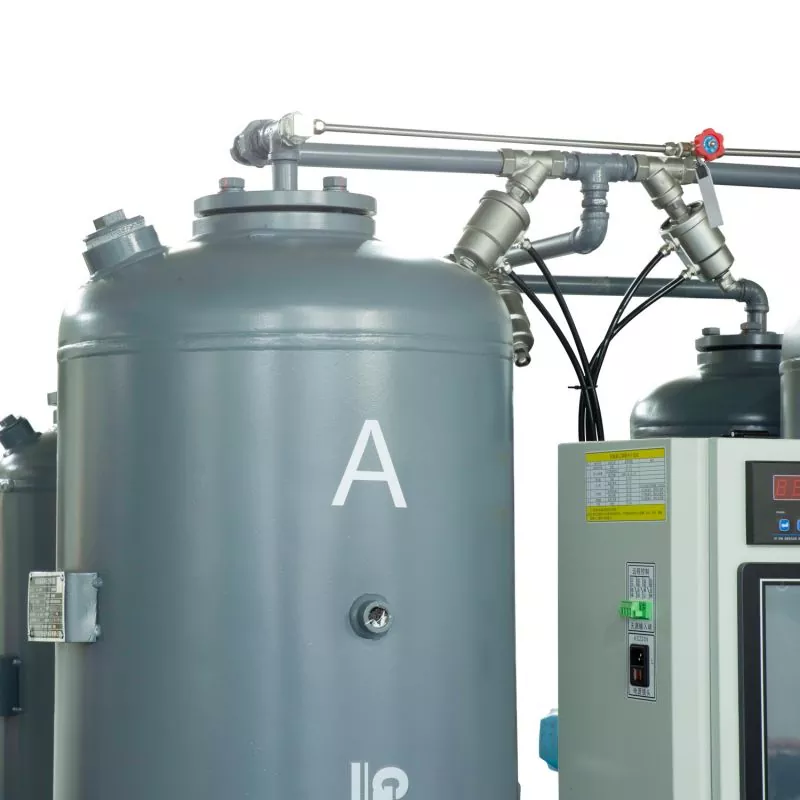

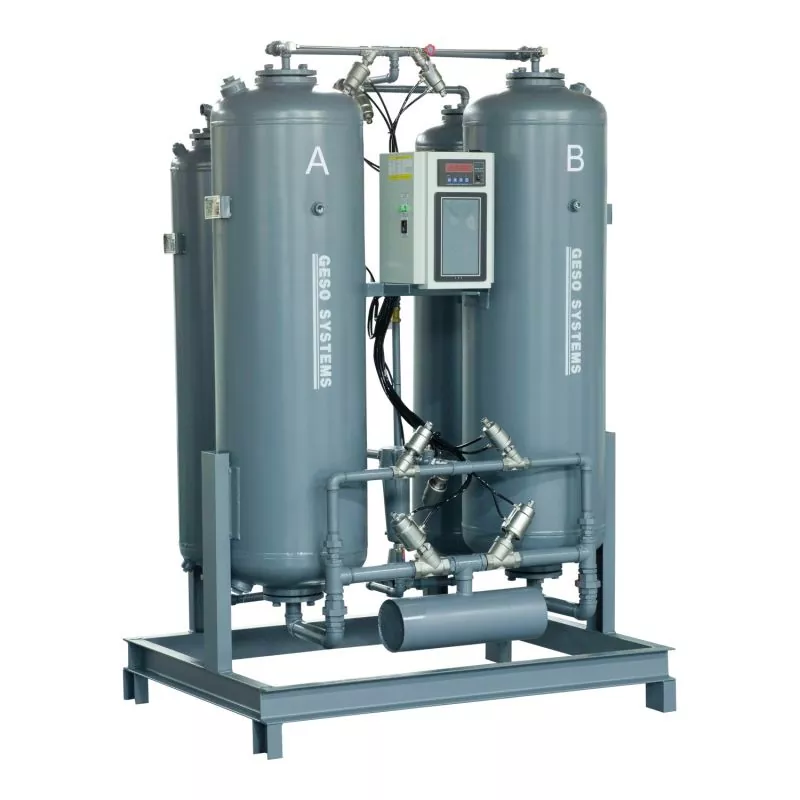

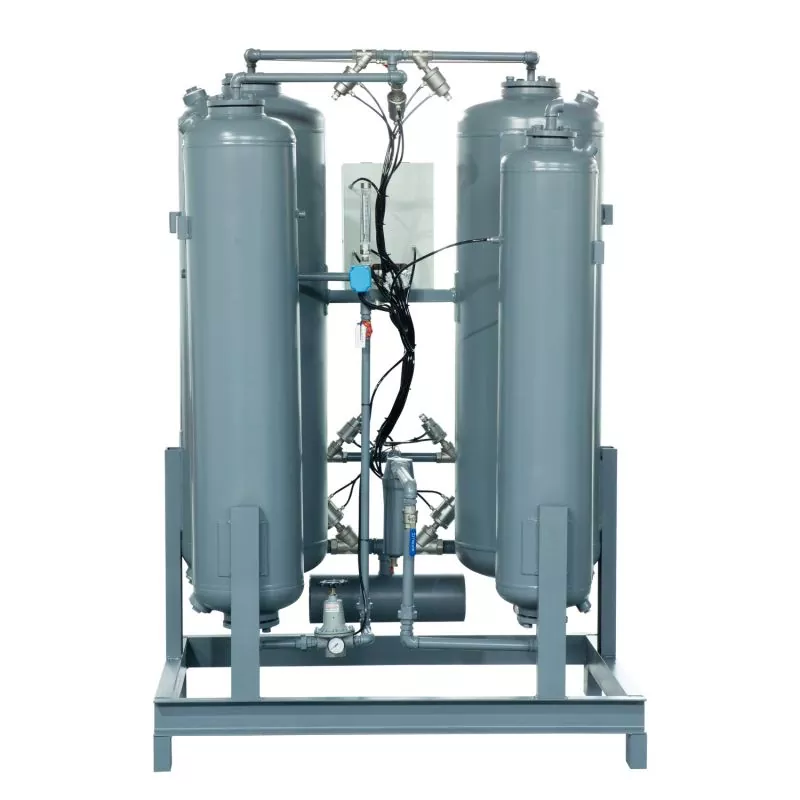

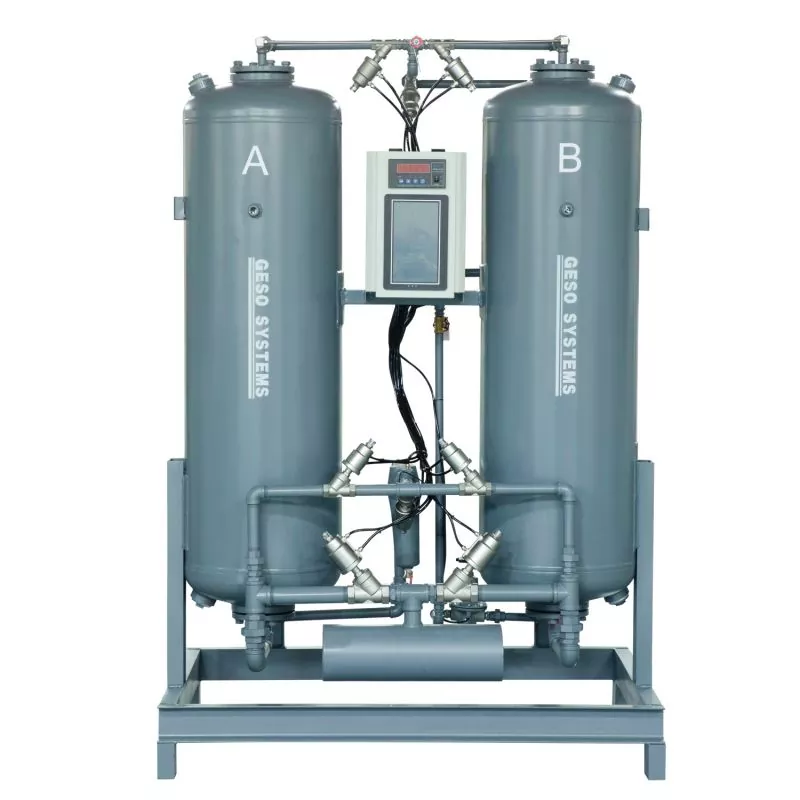

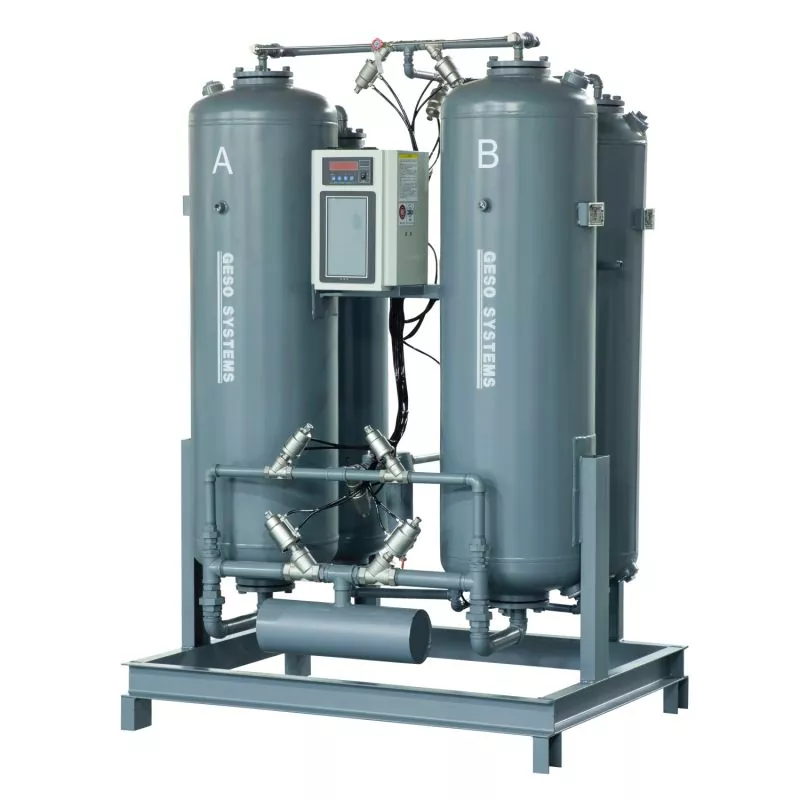

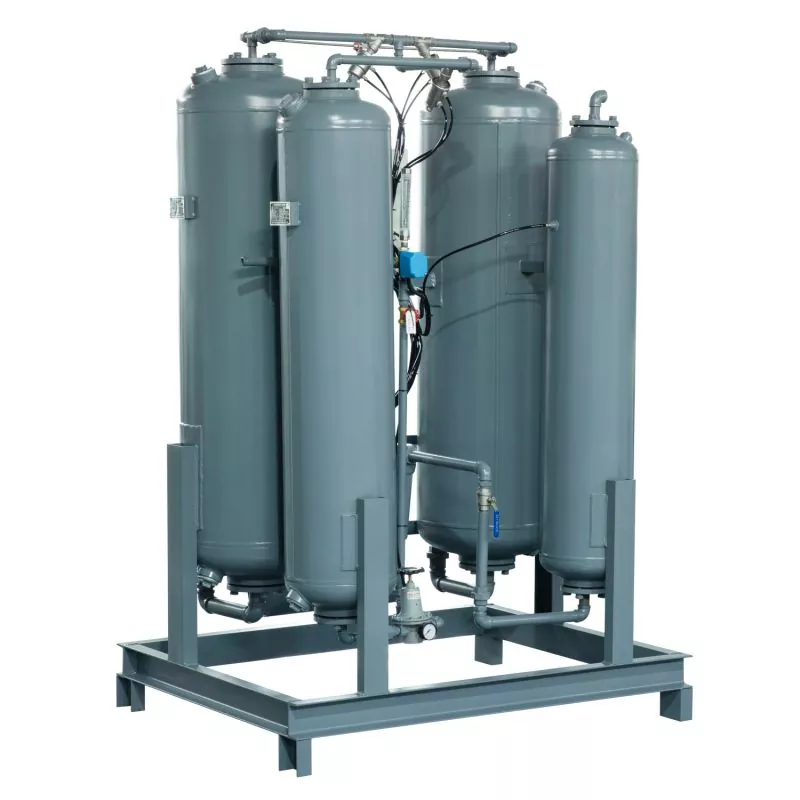

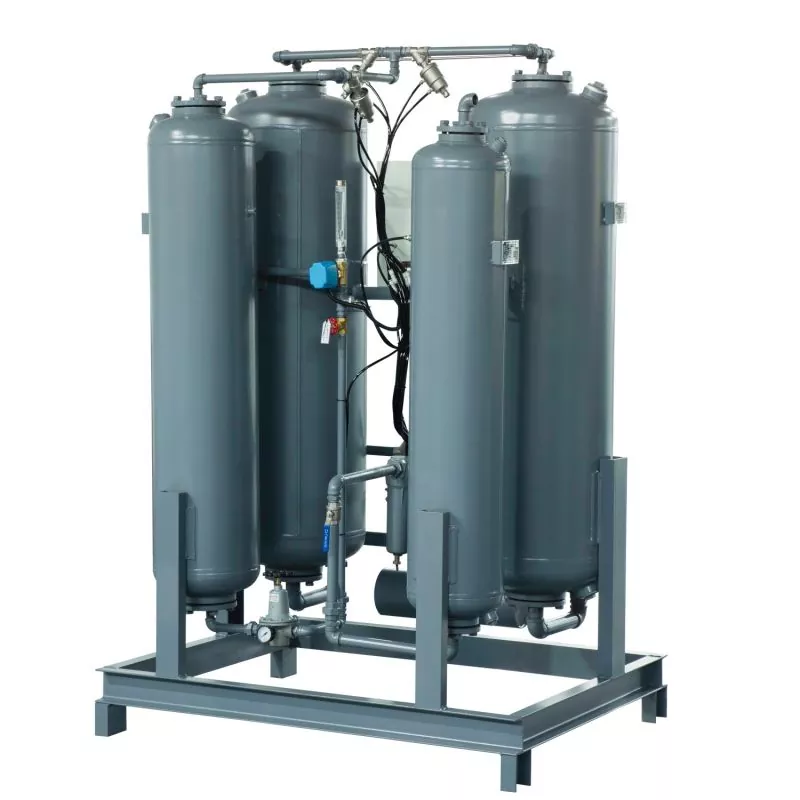

Pressure Swing Adsorption Nitrogen Generator Nitrogen Purity: 99.5%

Variable pressure adsorption nitrogen generator takes clean compressed air as raw material and carbon molecular sieve as adsorbent, and utilizes the principle of variable pressure adsorption to obtain nitrogen at room temerature. According to the difference gf the adsorption anount of oxygen and nitrogen in the air on the surface of carbon molecular sieve and the diffusion rate of oxygen and nitrogen in the carbon molecular sieve, the opening and closing of the programnable controller controls the pragrammed valve, realizing the process of adsorption under pressure and desorption under reduced ressure, conpleting the separation of oxygen and nitrogen, and obtaining the nitrogen with the required purity.

Send Inquiry

■ Geso pressure swing adsorption nitrogen generator fast startup,15-30 minutes to deliver qualified nitrogen gas

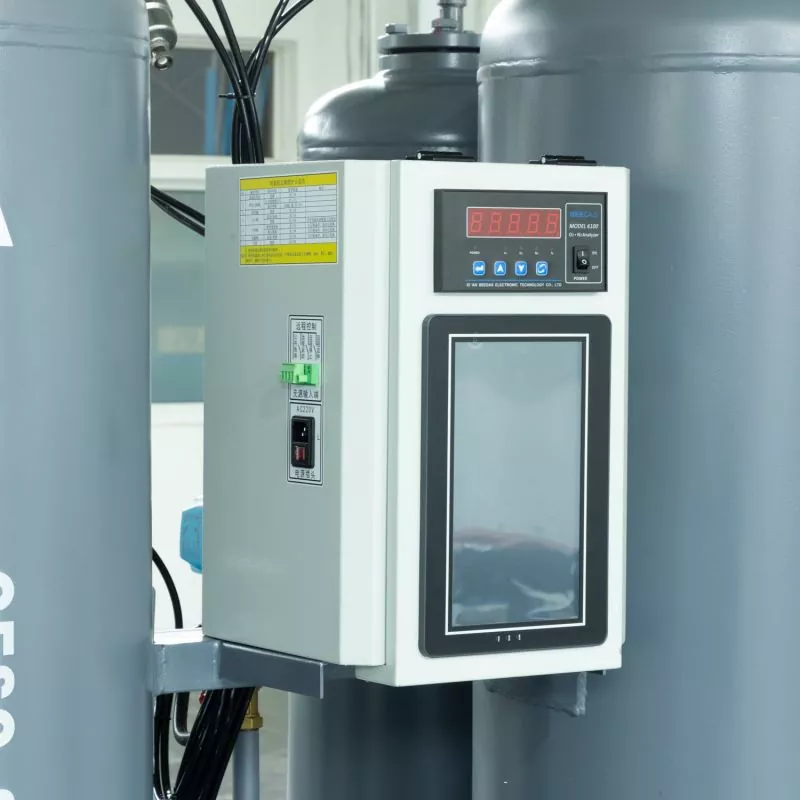

■ Fully automatic operation of the equipment, the whole process can be realized unattended

■ Highly efficient molecular sieve loading, tighter, more solid, longer service life

■ Pressure, purity and flow rate are stable and adjustable to meet different needs of customers.

■ Reasonable structure, advanced process, safe and stable, low energy consumption

Pressure swing adsorption nitrogen generator Technicalindicators：

Pressure, purity, and flow rate are stable and adjustable to meet the diferent needs of customers

■ Flow rate:5~ 3000Nm3 /hr

■ Purity: 95%～99.999%

■ Pressure:≤0.8Mpa ( adjustable )

■ Normal pressure dew point: ≤－40℃(lower can be customized)

Note: For lower oxygen content and dew point requireents, a nitrogen purification unit is available as an option.

Process Flow

GSN-99.5 Nitrogen Generator Nitrogen purity: 99.5%

Model	Nitrogen production (Nm³/h)	Effective air consumption (Nm³/min)	Inlet pipe size (DNmm)	Outlet pipe diameter (DNmm)	Host L×W(mm)
GSN30-99.5	30	1.4	25	15	1200×600
GSN40-99.5	40	1.9	25	25	1250×900
GSN50-99.5	50	2.3	32	25	1260×900
GSN60-99.5	60	2.8	32	25	1350×950
GSN70-99.5	70	3.3	32	25	1350×950
GSN80-99.5	80	3.7	40	25	1750×1000
GSN100-99.5	100	4.7	40	25	2150×1100
GSN150-99.5	150	7.0	50	32	2250×1150
GSN200-99.5	200	9	50	32	2500×1150
GSN300-99.5	300	14	65	40	2750×1450
GSN400-99.5	400	19	65	40	2850×1550
GSN500-99.5	500	24	80	50	3000×1650
GSN600-99.5	600	28	80	50	3100×1700
GSN700-99.5	700	32	80	50	3100×1700
GSN800-99.5	800	37	100	65	3250×1800
GSN900-99.5	900	42	100	65	3250×1800
GSN1000-99.5	1000	47	125	65	3500×2450
GSN1500-99.5	1500	75	150	80	3800×2150
GSN2000-99.5	2000	95	200	100	4400×3150
GSN3000-99.5	3000	140	250	125	5100×3300
