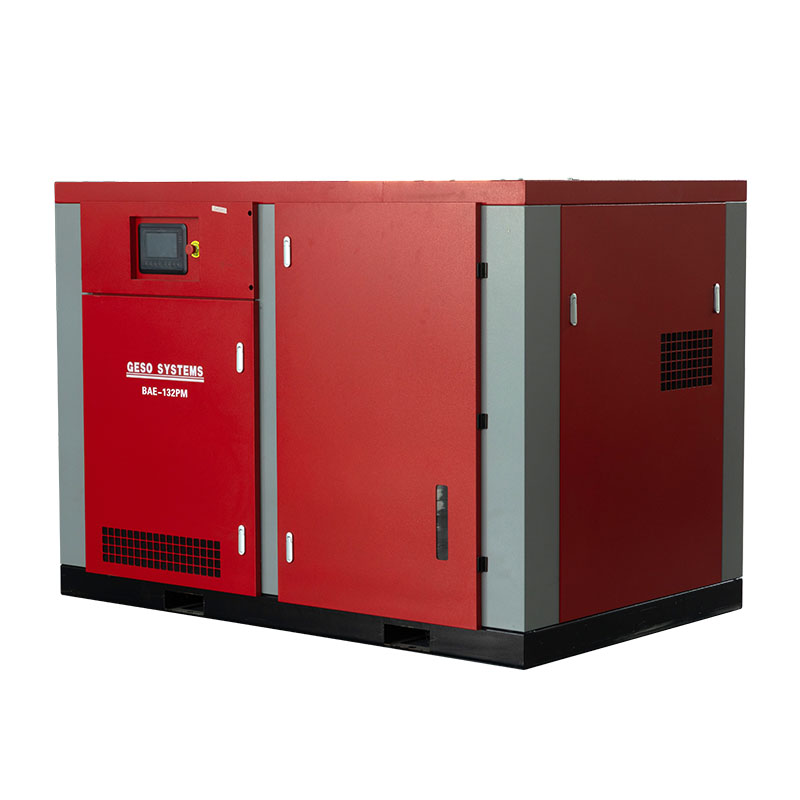

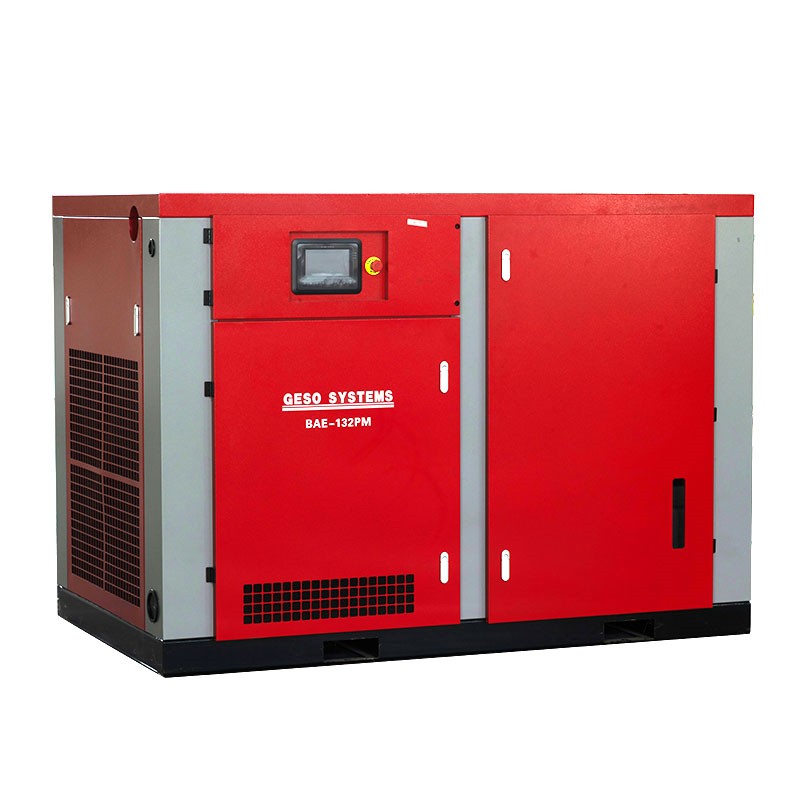

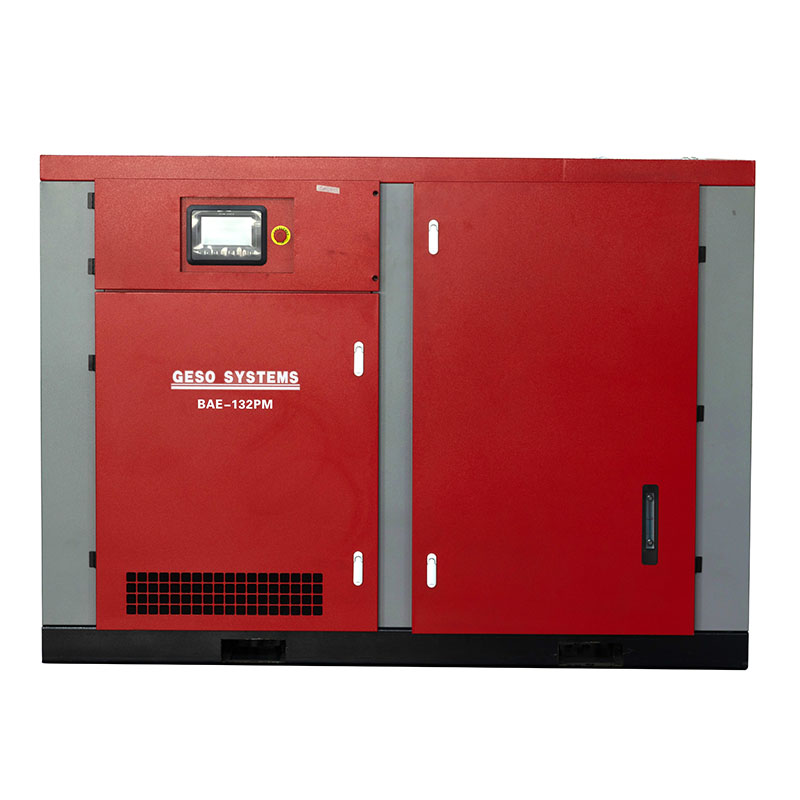

Permanent magnet variable frequency screw air compressor

Geso single-stage permanent magnet variable frequency screw air compressor design and manufacturing is highly sophisticated, reduce the workload of daily maintenance, permanent magnet variable frequency motor under the set pressure, air compressor through frequency adjustment, maintain the pressure difference within 0.1Mpa, in the use of more stable, more energy saving, data detection + visual  AI intelligent control can show the operating status in real time. Create digital and intelligent air compressor station for users, making tedious work easier.

Variable frequency screw air compressorr Product Features

■ Developed by UK based BAE BAES Rotor Profile

■ The function efficiency of inverter air compressor exceeds the national 1 level, and the energy efficiency level is IE5

■ Variable frequency air compressor adopting IP65 oil cooled permanent magnet motor,no fan energy consumption,ultra high protection level

■ Customized SKF bearings with a design life of over 50,000 hoursand ceramic plating for highpower motors

■ Permanent magnet motor permanent magnet model:38UH

■ Tubular water-cooled cooler with high external film heat transfer coefficient and strong anti pollution ability

Variable frequency screw air compressor Details

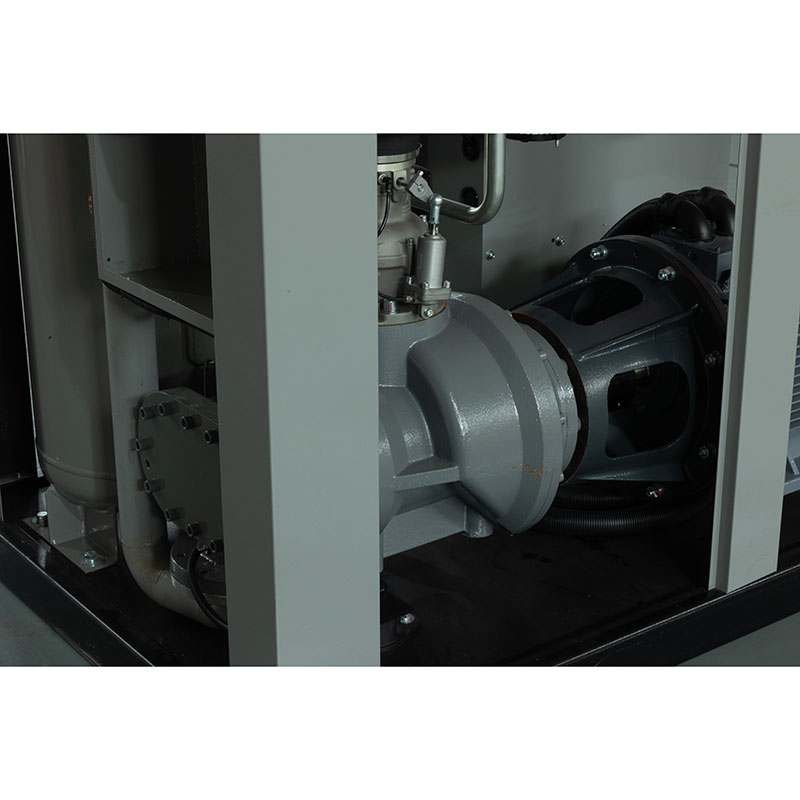

■ Geso air compressor element selection of 40CrA high-quality alloy steel,with wear-resistant and corrosion-resistant and other high-quality performance.

■ Adoption of BAE Group R&D BAES rotor profile,using the third generation of 5:6 asymmetric tooth rotor,highspeed operation of balanced force,the rotor tangential speed of≤35m/s,rotor clearance to maintain the gap between 0.003INCH, the same  power section of the element can be energy-saving 10-15%.

■ The rotor adopts CNC 5-axis rotor grinding machine,polyhedral and curved surface machining realizes high precision automated production.

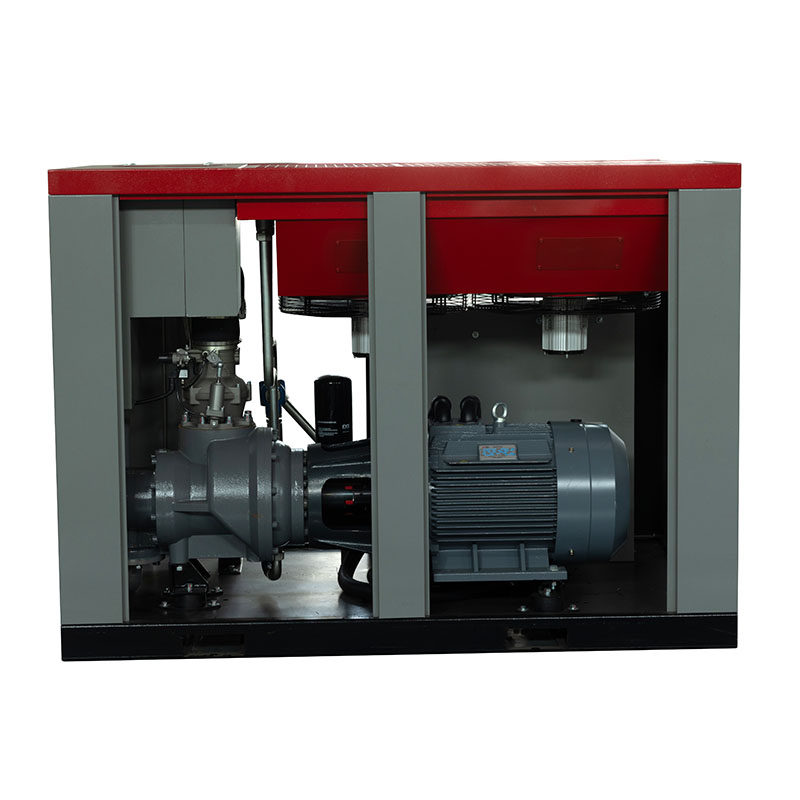

Permanent Magnet Synchronous Motor

■ Due to the different characteristics of the voltage in China and in Europe, the technical staff of the Geso Group visited domestic high-end motor manufacturers that meet the Group's production requirements and standards.

■ Ultra-low temperature rise design, the Air compressor element can operate stably under long-term low frequency, the permanent magnet is made of 38UH material, the maximum working temperature can reach 180C, IE5 energy efficiency grade, under the set pressure, the unit can be adjusted by frequency conversion to keep the pressure difference within 0. lMpa which makes the unit run more smoothly and more efficiently during the long-term use.

Intelligent Control System

■ Data detection+visualization AI intelligent control: real-time data monitoring,comprehensive diagnostic reports,can be on multiple equipment joint control AI intelligent calculation,matching,so as to achieve cost reduction and increase efficiency

■ Cell phones and computers can show the dynamic screen in real time,easy to operate,for users to create a digital,intelligent air compressor station room

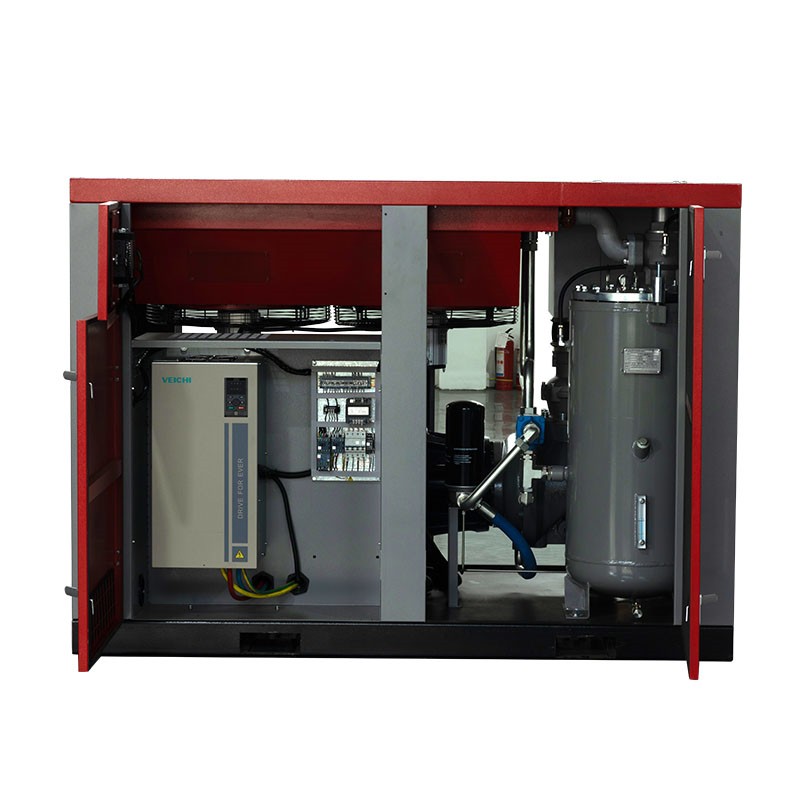

Frequency Converter

■ Customized high-performance vector control inverter of Huichuan/ABB brand Customized inverter.

■ Speed control can start at zero speed and adjust the acceleration curve evenly according to the user's needs.

■  With the option of linear acceleration, S-shaped acceleration or automatic acceleration.

Comparison of power saving effect between 75KW screw compressor and Geso high-efficiency frequency conversion screw compressor: (Based on an average of 8,000 hours of operation per year):

Note: PM:Permanent Magnet Frequency Conversion

The Company Has The Right To Change The Design For The Continuous Improvement Of The Products,and The Parameters Will Be Changed Without Prior Notice

Note:PM:permanent Magnet Frequency Conversion

The Company Has The Right To Change The Design For The Continuous Improvement Of The Products,and The Parameters Will Be Changed Without Prior Notice.
