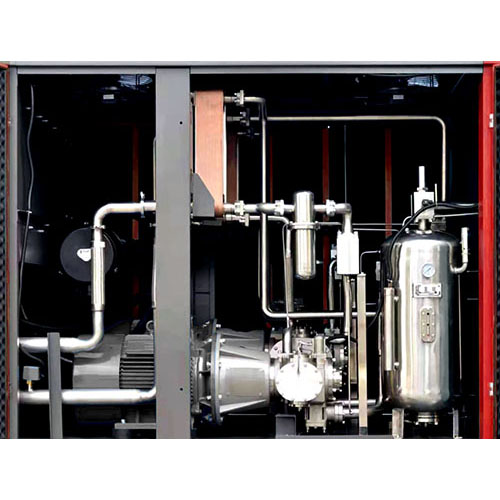

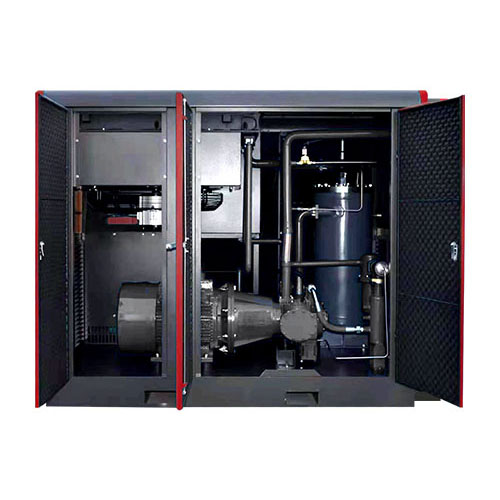

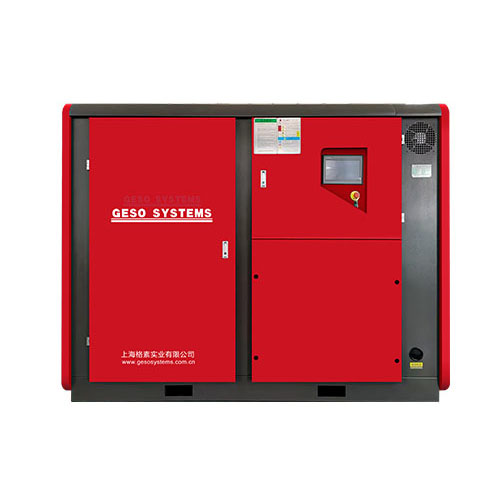

Medium and High Pressure Screw Air Compressor

Medium and High Pressure Screw Air Compressor is widely used in industrial production industry for high pressure air tightness testing, high pressure air supply for military machinery, chemical industry, petroleum, PET/PP bottle blowing industry and so on. At present,most of the domestic and even international reciprocating piston air ccmpressors are used.which have high vibration, high noise, high energy consumption, difficult maintenance, high failure rate,etc.so that users can not realize safe and stable production. The R&D team of Geso group has launched the Dual drive screw air compressor, which solves the problems of reciprocating piston air compressor, and has been recognized and trusted by the majority of users in many years of application.

Send Inquiry

Geso medium and high pressure screw air compressors are widely used in the high-pressure gas supply industry of military machinery, chemical industry, and PET/PP blowing industry in petroleum. They have low noise, low energy consumption, fast maintenance, and low failure rate, and have been recognized by a large number of users in many years of application.

Efficient dual-drive system

■ Geso independent research and development of dual elements，respectively, single-screw compressor element + twin-screw compressor element, so that the product performance is more stable, lower energy consumption.

■ Dual elements processing technology, element vibration is small,low noise SKF heavy-duty bearings with high stiffness rotors ensure long term use and more durable life.

■ The use of Geso design BAES rotor profile, maximize the screw compression efficiency high precision.

Intelligent control systems

■ Data detection + visualization AI intelligent control, can realize multiple equipment joint control,unattended,remote control.

■ Cell phone, conputer real-time display of the operating state reduce operating costs Standardized design,professional wiring: reasonable, simple, clear, conducive to the maintenance of Schneider or Siemens high-compatibility series components, the use of safe and secure.

Built-in oil separator design

■ The whole series of sub-master oil separator core adopts folding type,increasing the separation area, small pressure difference and prolonging the service life.

■ Simple design of sub-master oil separation for easy maintenance

■ Sub-master oil separation design program, reducing the oil content at the compressor outlet.

Self-designed air filters

■ Self-developed customized filter media,made of cellulose synthetic blends

■ Dual-layer sub-master air filters for up to 99.99% filtration and increased service life

■ Equipped with differential pressure detection,maintenance reminder function, to ensure stable operation of the equipment

Built-in purification system

■ The product has an internal purification device to reduce the moisture content of compressed air

■ The product export dust removal effect can reach 0.01um

■ Supply gas export temperature is ower than 25℃,the oil content is less than 0.01ppm

High-intensity cooling design

■ Aluminum plate-fin heat exchange air-cooled cooler, corrosion-resistant aluminum alloy material,cooling material to add a special alloy material to ensure the hardness of the cooler

■ Tube-type water-cooled cooler, high heat transfer coefficient between the outer membrane of the tube ,strong ability of anticontamination.

■ Extra-large oil cooler design: even in high temperature and dusty enyironment,the lubricating oil temperature can be in the normal range, ensuring safer use of air compressor in summer.

Model	Motor Power （KW）	Working Pressure （Mpa）	Air Delivery （m³/min）	Dimensions（mm）（LWH）			Outlet Pipe Diameter	Weight （kg）
BAEG-37APM	23	1.6	3.5	1810	1200	1550	DN25	1200
	26	2.0
	30	2.5
	33	3.0
	35	3.5
	37	4.0
BAEG-45APM	26	1.6	4.5	1810	1200	1550	DN25	1280
	30	2.0
	33	2.5
	37	3.0
	40	3.5
	45	4.0
BAEG-55APM	33	1.6	6.0	2300	1600	1820	DN40	1800
	37	2.0
	40	2.5
	45	3.0
	50	3.5
	55	4.0
BAEG-75APM	52	1.6	8.5	2500	1760	1800	DN40	2000
	60	2.0
	65	2.5
	70	3.0
	72	3.5
	75	4.0
BAEG-90APM	59	1.6	10.5	3100	1860	2010	DN50	2500
	67	2.0
	74	2.5
	80	3.0
	85	3.5
	90	4.0
BAEG-110 A(W)PM	75	1.6	12.0	3100	1860	2010	DN50	3000
	82	2.0
	90	2.5
	95	3.0
	105	3.5
	110	4.0
BAEG-130 A(W)PM	80	1.6	14.0	3100	1860	2010	DN50	3200
	90	2.0
	110	2.5
	120	3.0
	125	3.5
	130	4.0
BAEG-150 A(W)PM	85	1.6	16.0	3100	1860	2010	DN50	3310
	90	2.0
	110	2.5
	130	3.0
	140	3.5
	150	4.0
BAEG-165 WPM	90	1.6	18.0	3100	1860	2010	DN65	3600
	100	2.0
	120	2.5
	140	3.0
	155	3.5
	165	4.0
BAEG-185WPM	110	1.6	20.0	3500	2000	2300	DN65	3900
	120	2.0
	150	2.5
	165	3.0
	175	3.5
	185	4.0
BAEG-200WPM	120	1.6	23.0	3500	1860	2160	DN65	4200
	150	2.0
	165	2.5
	175	3.0
	185	3.5
	200	4.0
BAEG-220WPM	150	1.6	25.0	3500	1860	2160	DN65	4500
	165	2.0
	175	2.5
	185	3.0
	200	3.5
	220	4.0
BAEG-250WPM	165	1.6	28.0	3500	1860	2160	DN80	4800
	175	2.0
	185	2.5
	200	3.0
	220	3.5
	250	4.0
BAEG-270WPM	175	1.6	30.0	4500	2300	2400	DN80	5100
	185	2.0
	200	2.5
	220	3.0
	250	3.5
	270	4.0
BAEG-315WPM	200	1.6	35.0	4500	2300	2400	DN80	5500
	220	2.0
	230	2.5
	270	3.0
	290	3.5
	315	4.0
BAEG-355WPM	230	1.6	40.0	4500	2300	2400	DN100	5900
	250	2.0
	290	2.5
	315	3.0
	345	3.5
	355	4.0
BAEG-405WPM	280	1.6	45.0	4500	2300	2400	DN100	6200
	300	2.0
	325	2.5
	355	3.0
	385	3.5
	405	4.0
BAEG-450WPM	325	1.6	50.0	4500	2300	2400	DN150	6800
	345	2.0
	365	2.5
	415	3.0
	435	3.5
	450	4.0
BAEG-500WPM	385	1.6	55.0	5000	2400	2500	DN200	7200
	415	2.0
	445	2.5
	465	3.0
	480	3.5
	500	4.0
BAEG-550WPM	435	1.6	60.0	5000	2400	2500	DN200	7500
	465	2.0
	485	2.5
	510	3.0
	540	3.5
	550	4.0
BAEG-600WPM	485	1.6	65.0	5000	2400	2500	DN200	7900
	500	2.0
	540	2.5
	560	3.0
	580	3.5
	600	4.0
BAEG-650WPM	560	1.6	70.0	6000	2400	2800	DN250	8400
	580	2.0
	590	2.5
	620	3.0
	640	3.5
	650	4.0
BAEG-700WPM	600	1.6	75.0	6000	2400	2800	DN250	8700
	630	2.0
	650	2.5
	660	3.0
	680	3.5
	700	4.0
BAEG-750WPM	630	1.6	80.0	6000	2400	2800	DN300	9000
	650	2.0
	660	2.5
	680	3.0
	700	3.5
	750	4.0
BAEG-800WPM	680	1.6	85.0	6000	2400	2800	DN300	9500
	700	2.0
	730	2.5
	750	3.0
	780	3.5
	800	4.0
BAEG-850WPM	750	1.6	90.0	6000	2400	2800	DN300	9800
	760	2.0
	790	2.5
	810	3.0
	830	3.5
	850	4.0

Note: A:Air-cooled W:Water-cooled

The Company Has The Right To Change The Design For The Continuous Improvement Of The Products,and The Parameters Will Be Changed Without Prior Notice.
